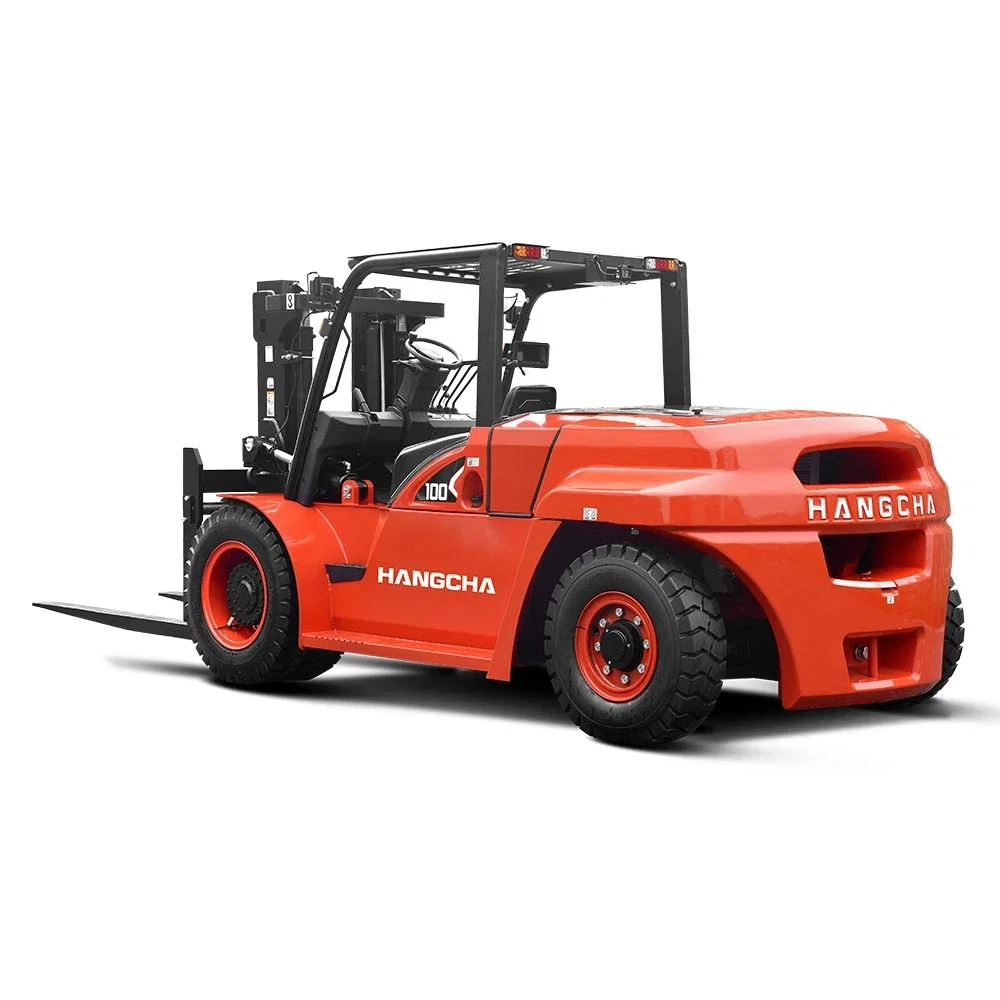

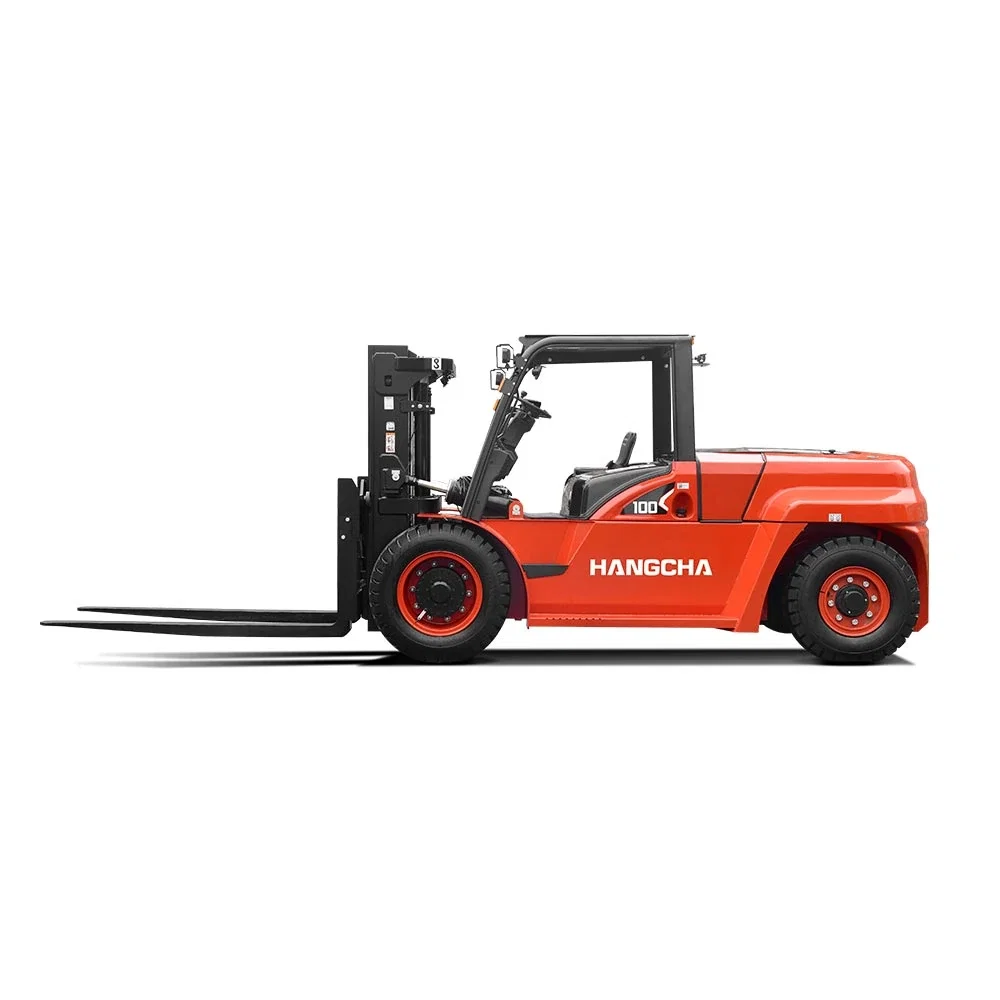

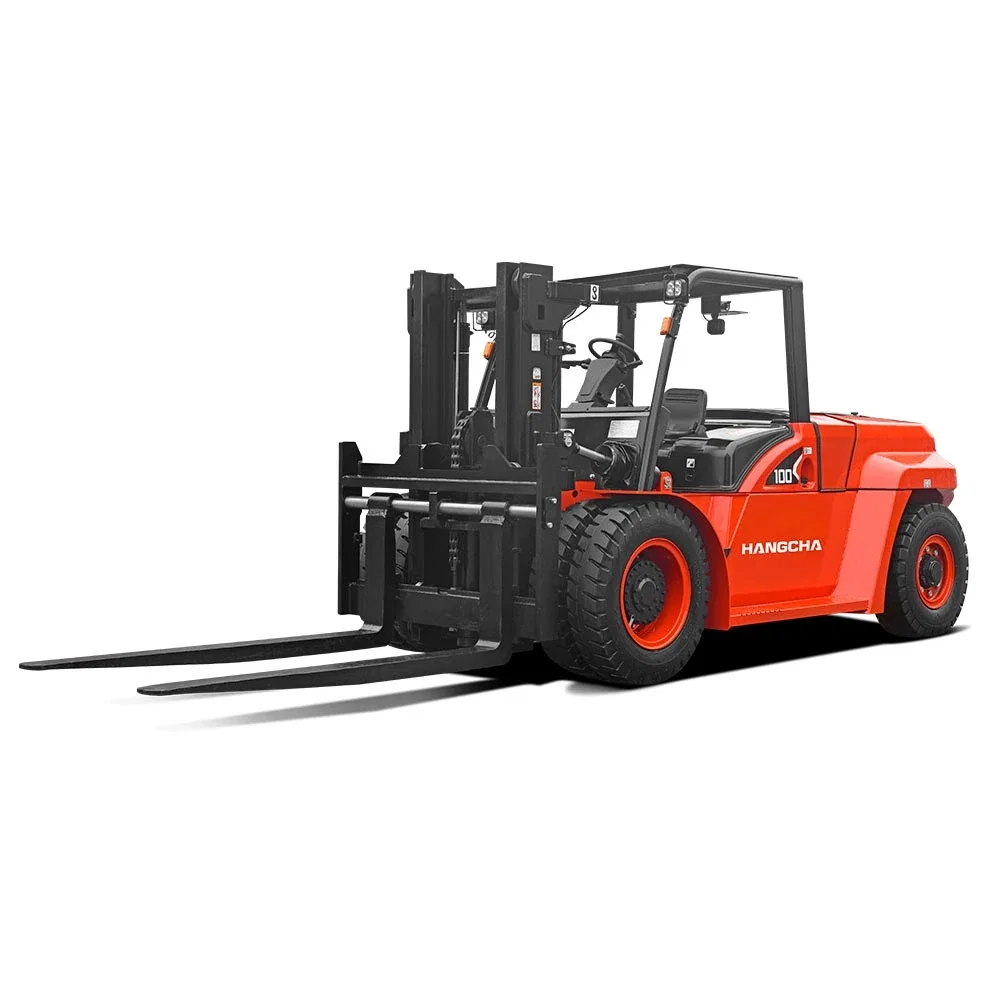

X series 5.0-10t X series Diesel Container Forklift
- Load Capacity 5,000~10,000kg
- Lift Height 2400-3600mm
- Drive Types Diesel
Highlights

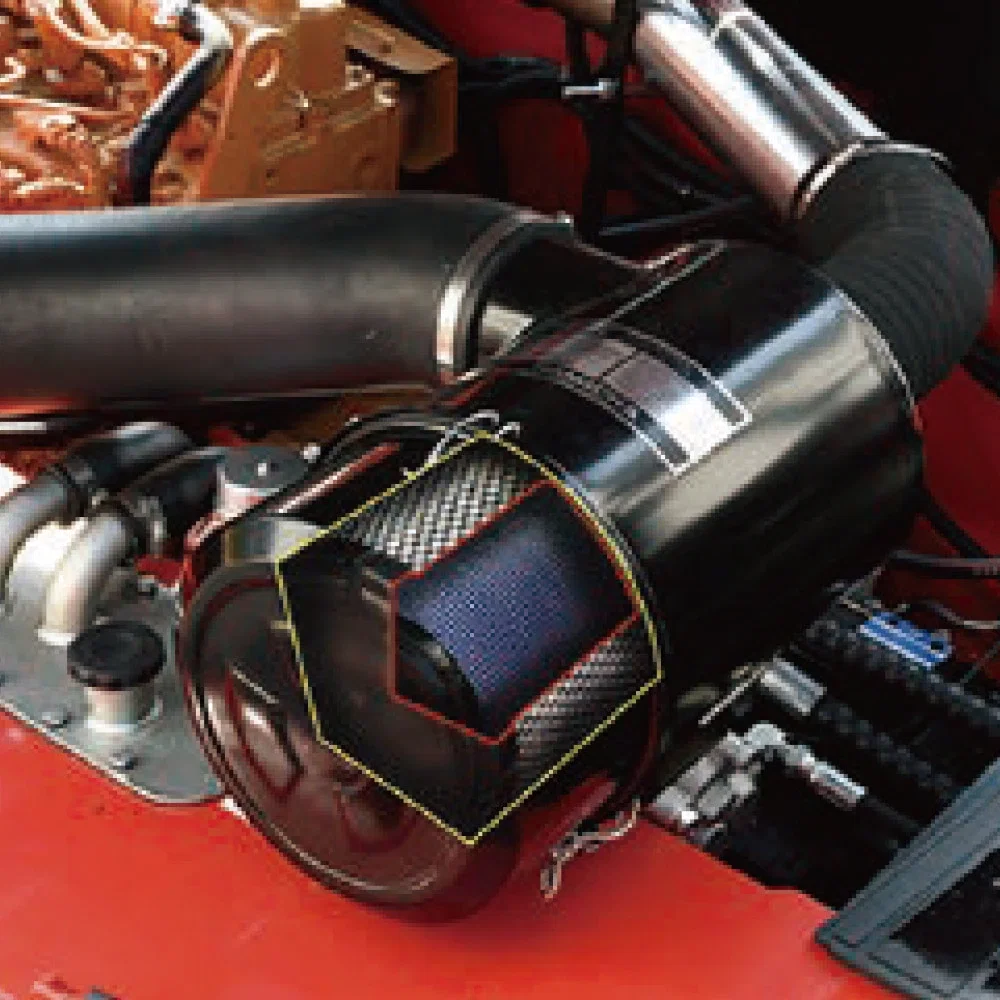

The optimized air intake and exhaust system, featuring a high-capacity exhaust silencer and a high-efficiency intake silencer, effectively reduces the overall noise levels and minimizes vibrations throughout the vehicle, ensuring a quieter and more comfortable operation.
The newly developed LCD instrument offers enhanced functionality and greater stability, providing a complete display of the vehicle's operating status, fault diagnostics, and other critical information. This enables the operator to easily and intuitively monitor the vehicle’s condition, making maintenance more convenient and efficient.

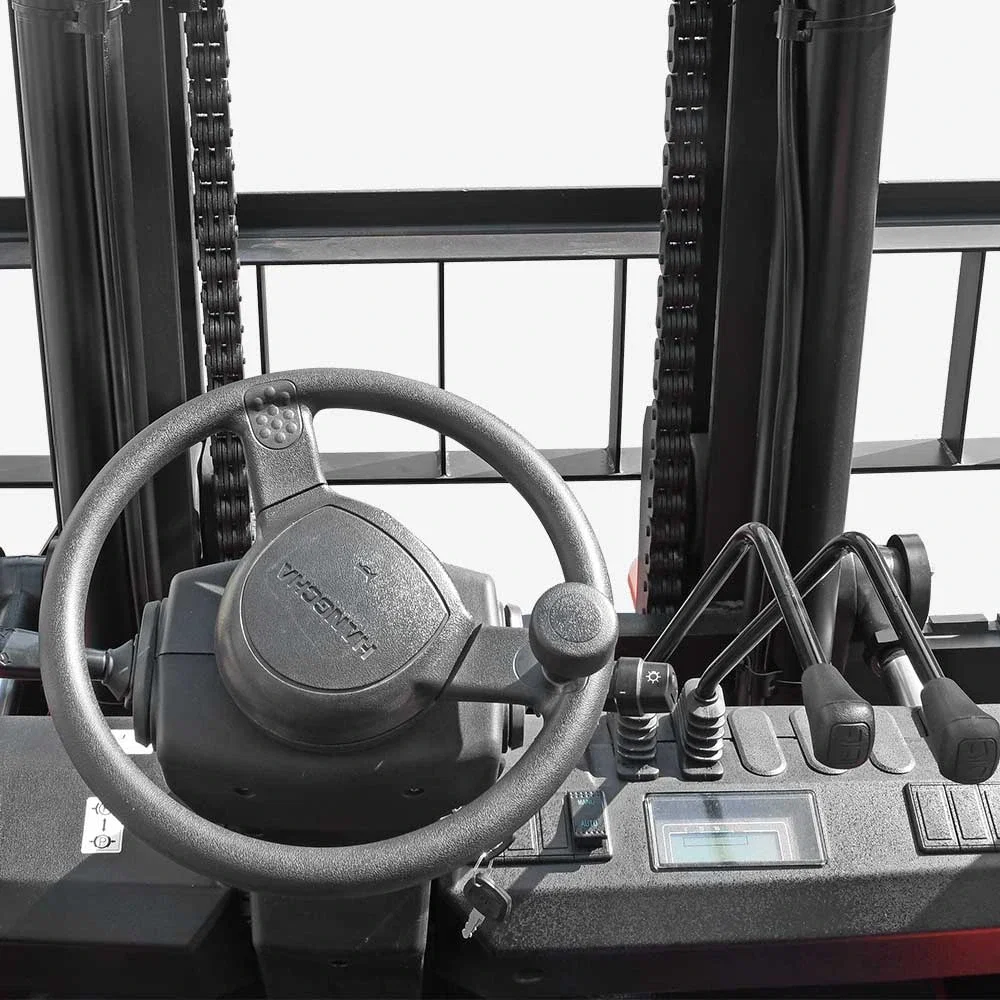

The design of the small-diameter steering wheel, electro-hydraulic reversing system, and car-type double-handle combination switch significantly enhances driving comfort, providing smoother control and a more ergonomic driving experience.
The adoption of a new-generation integrated electric box simplifies maintenance and repairs with a more rational layout. It also offers improved waterproof performance, enhancing durability and reliability in various operating conditions.
Features
Vehicle warranty period
Coverage now lasts 2 years or 4,000 hours (whichever occurs first), excluding wear parts, providing longer protection for critical components.
Standard Camera System
Front/rear cameras integrated into the onboard video system expand visibility, enhancing safety in both forward and reverse operations.

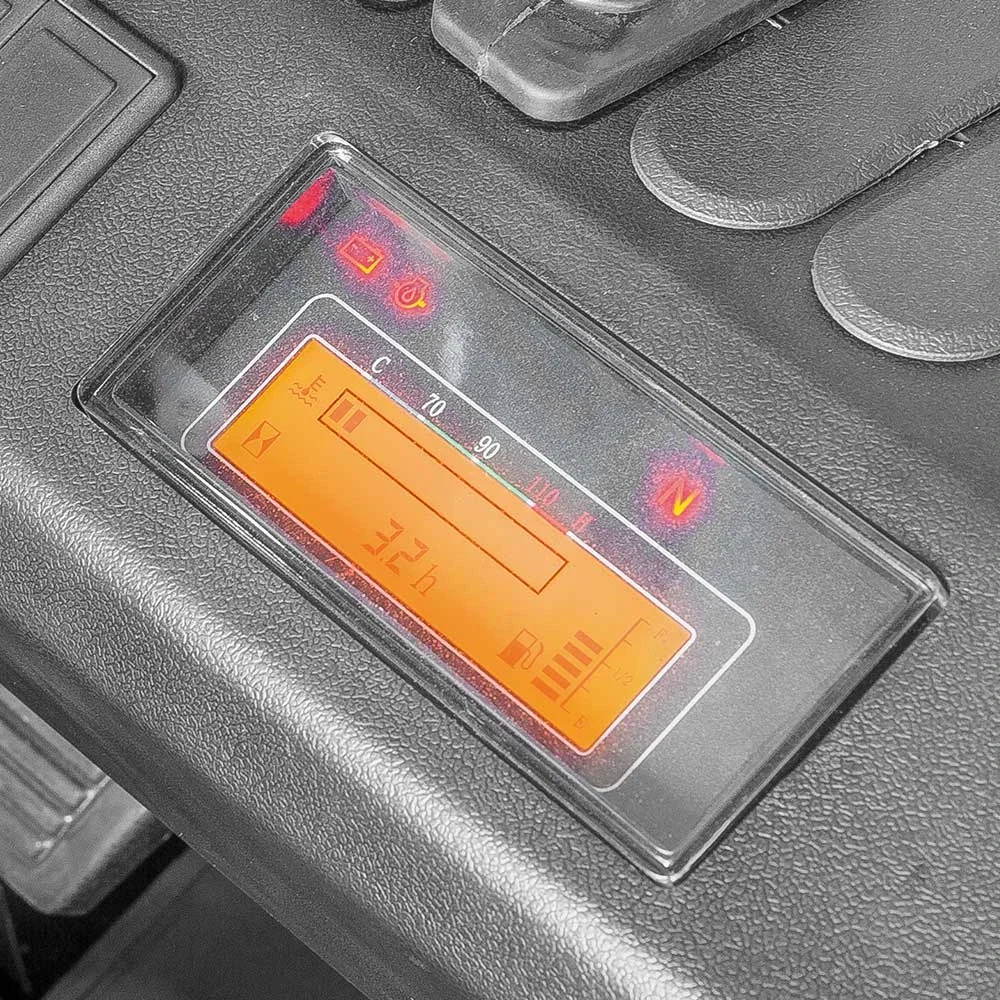

Advanced LCD Instrumentation
New high-stability LCD displays provide real-time operational data and fault alerts, streamlining monitoring and maintenance for peak efficiency.

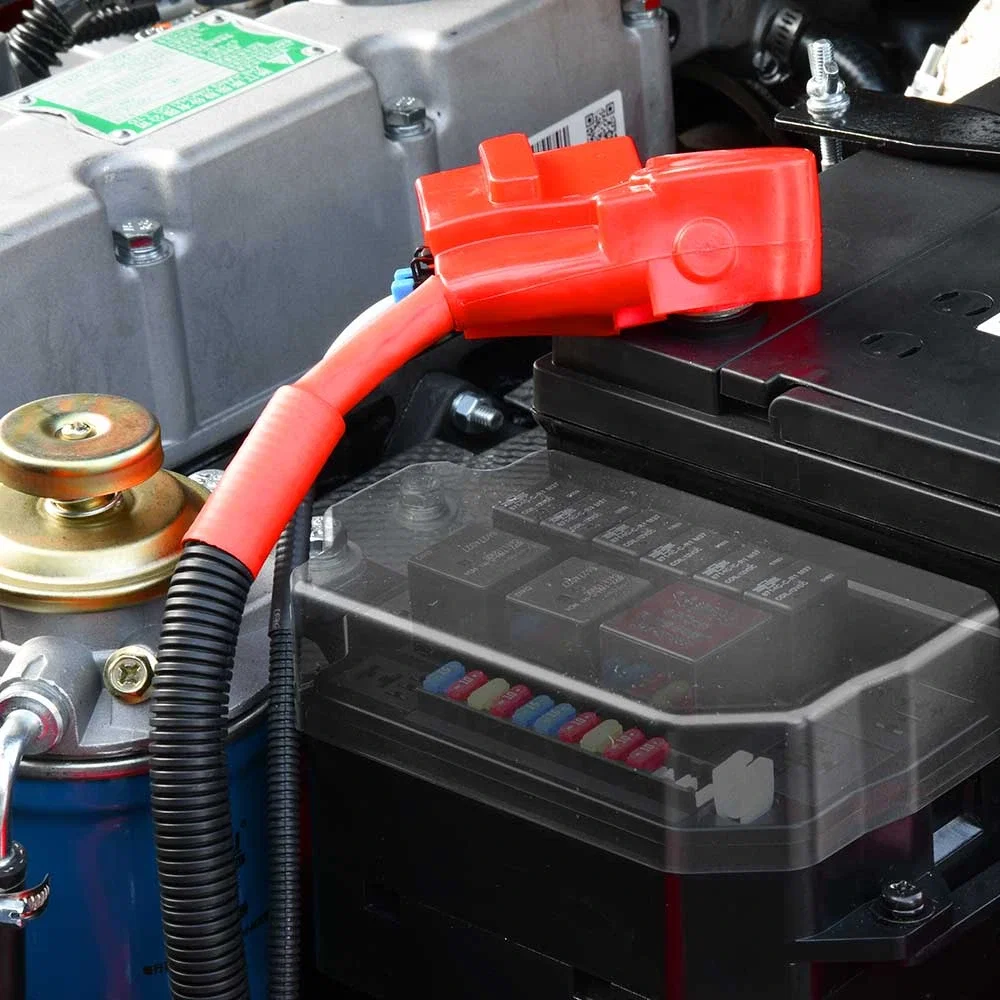

New-Generation Electrical Box
The integrated design ensures organized components for easy maintenance, while enhanced waterproofing boosts durability in harsh environments.
The vehicle can operate inside a container
Compact, low-profile design enables efficient inside-container operations, excelling in confined spaces with limited height and width.
Other Specifications
| Product Type | IC- Trucks |
|---|---|
| Load Capacity | 5,000~10,000kg |
| Lift Height | 2400-3600mm |
| Service Weight | 8100-11900kg |
| Dimensions (L/W/H) | (4745~5753) * (1750~1960)*(2500) mm |
| Turning Radius | 3250~3940mm |
| Gradeability | 35/20% |
| Travel Speed | 27/30km/h |
| Battery Voltage (STD) | 12V/90Ah |
