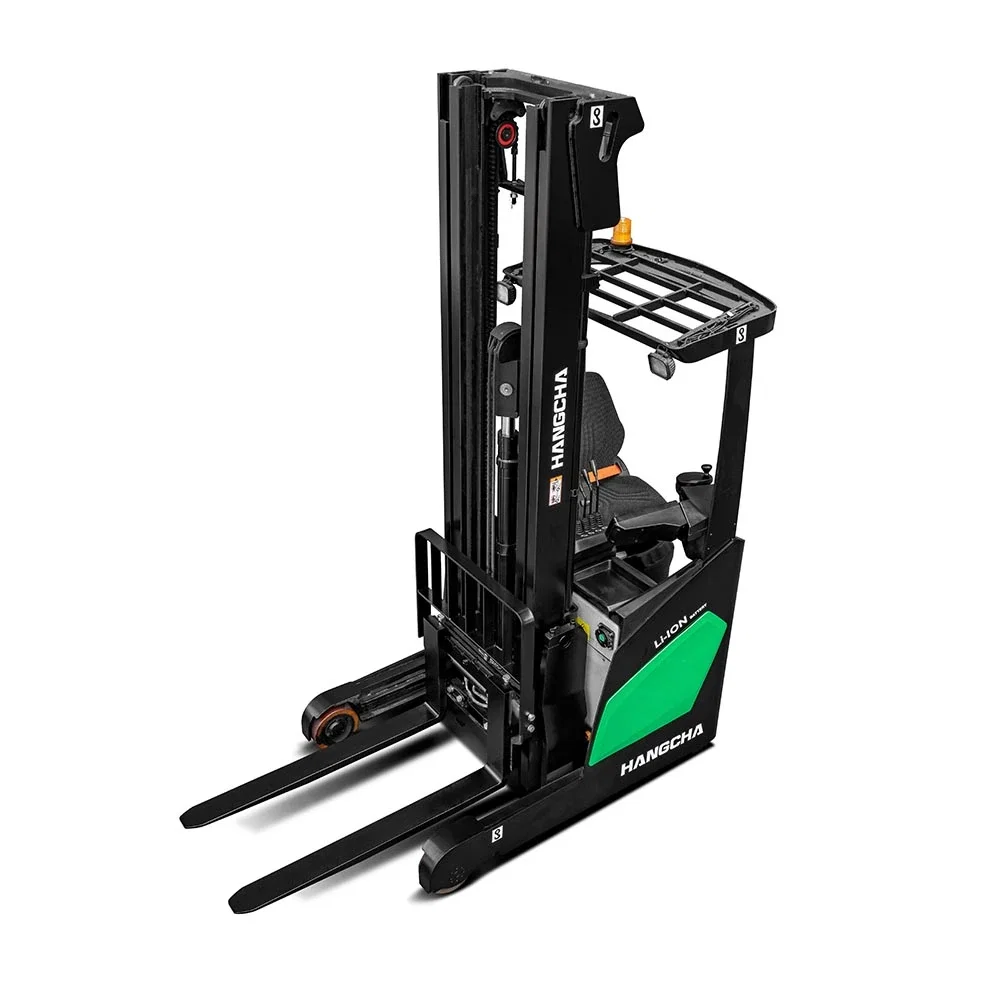

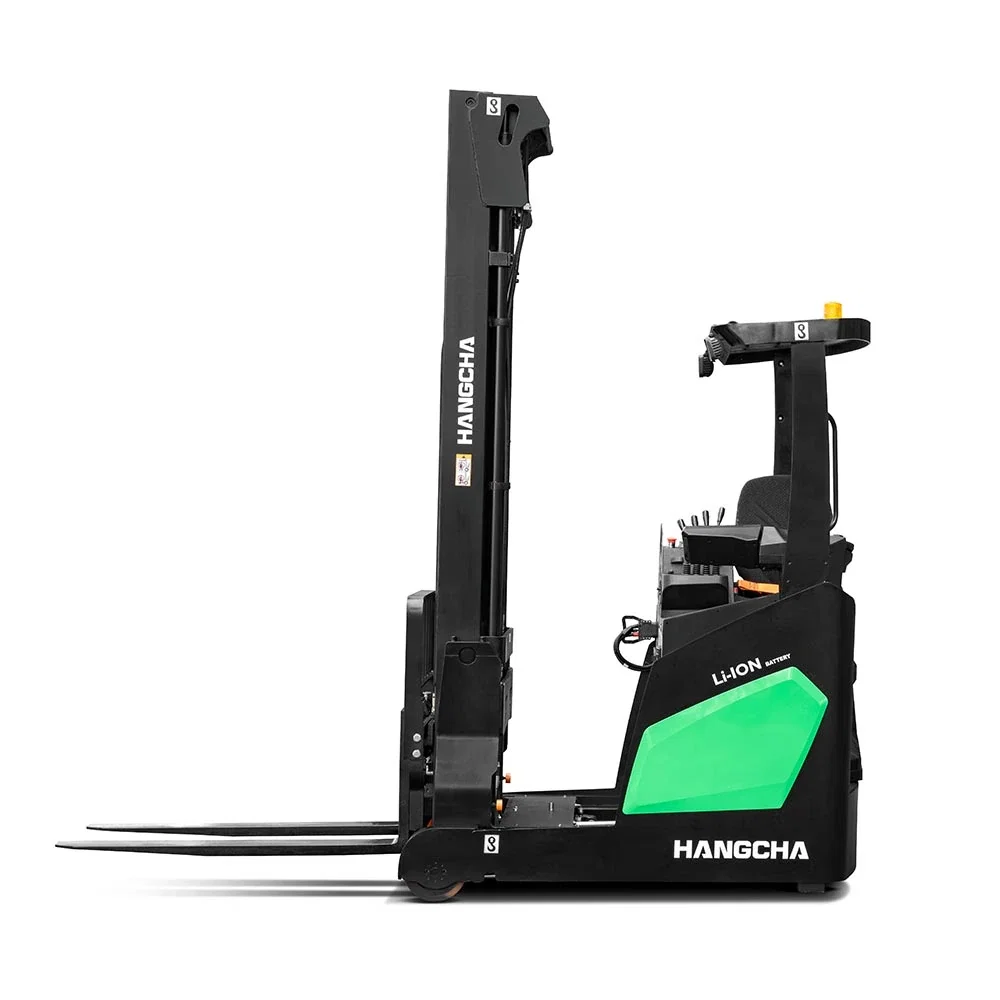

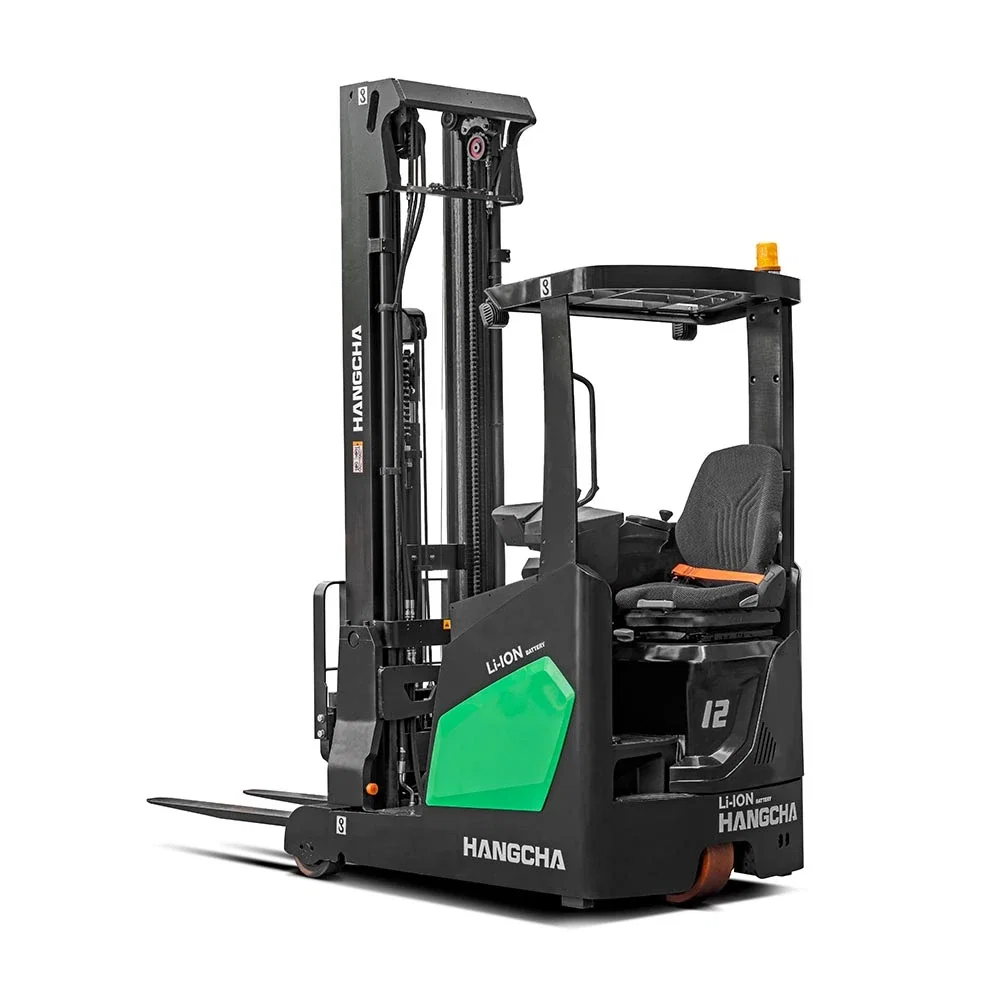

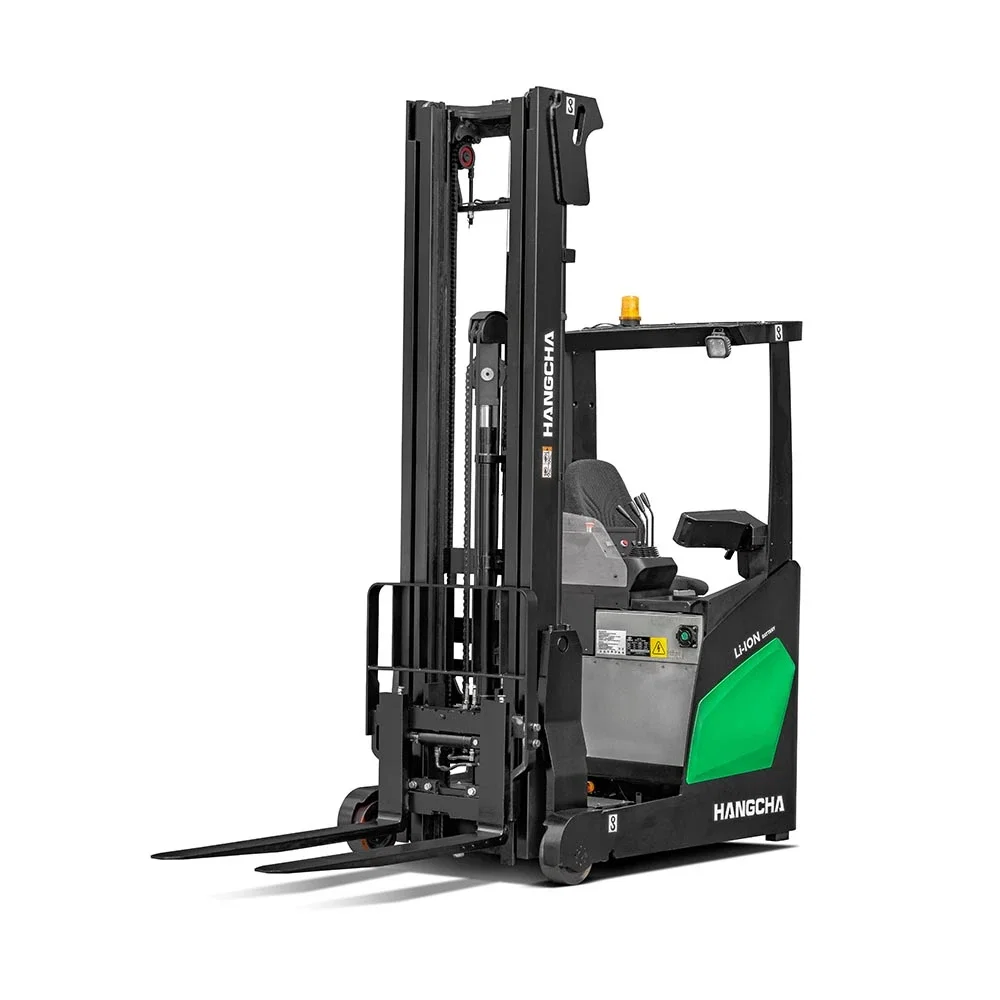

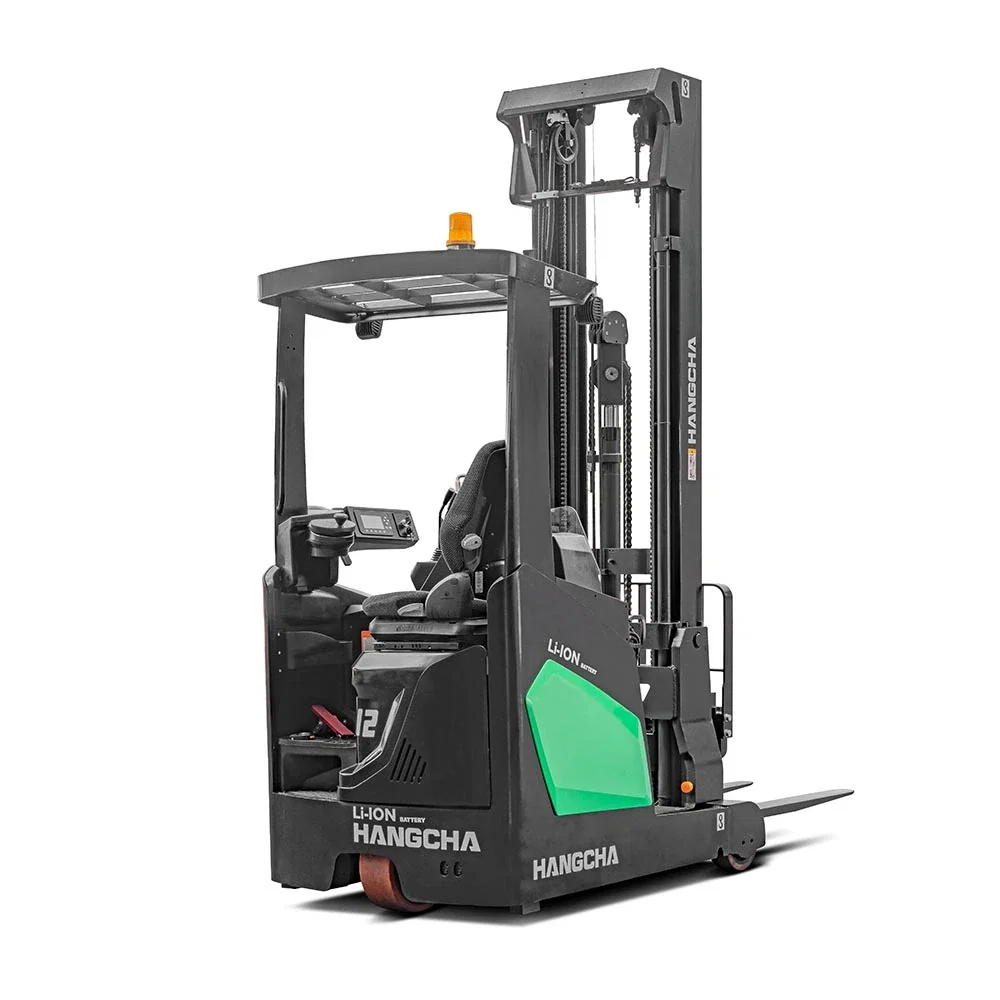

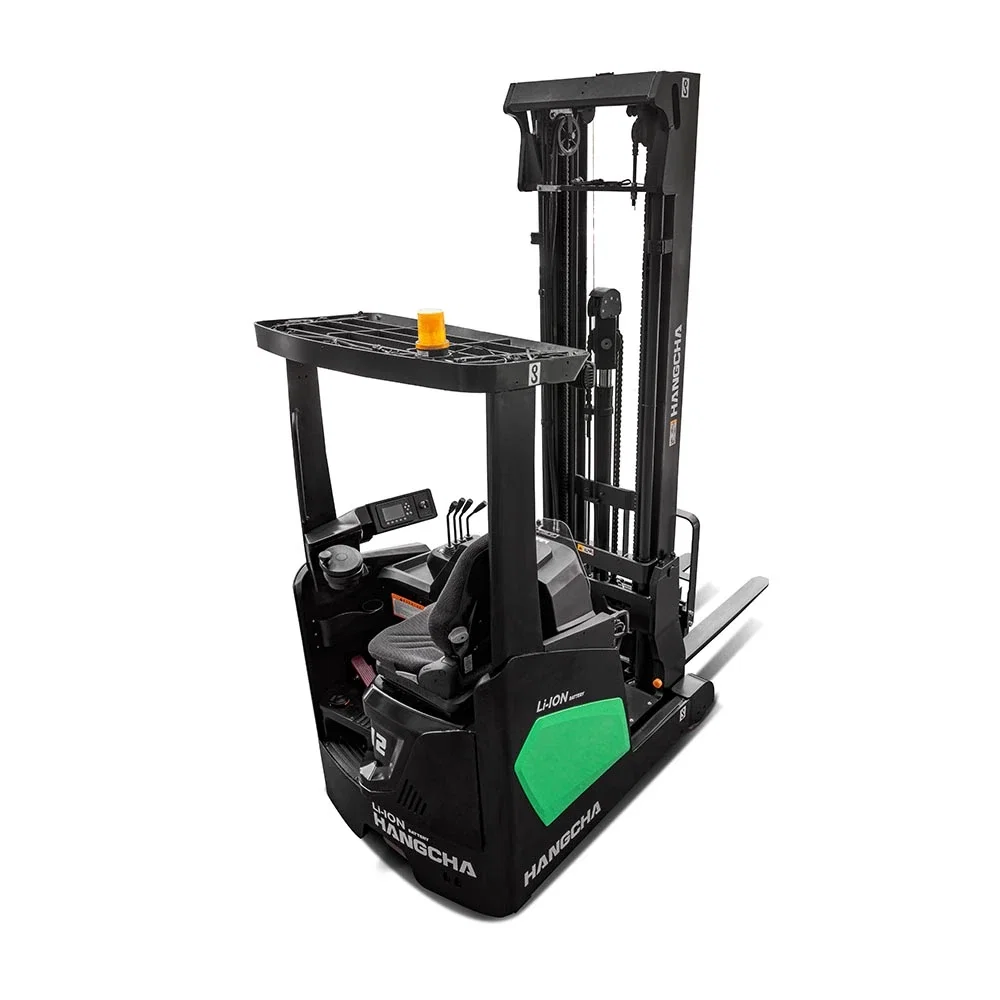

1.0-1.2t XC Series Reach Truck with Lithium Power
- Load Capacity 1,000~1,200kg
- Lift Height 2700~7000mm
- Drive Types Li-Ion
Highlights

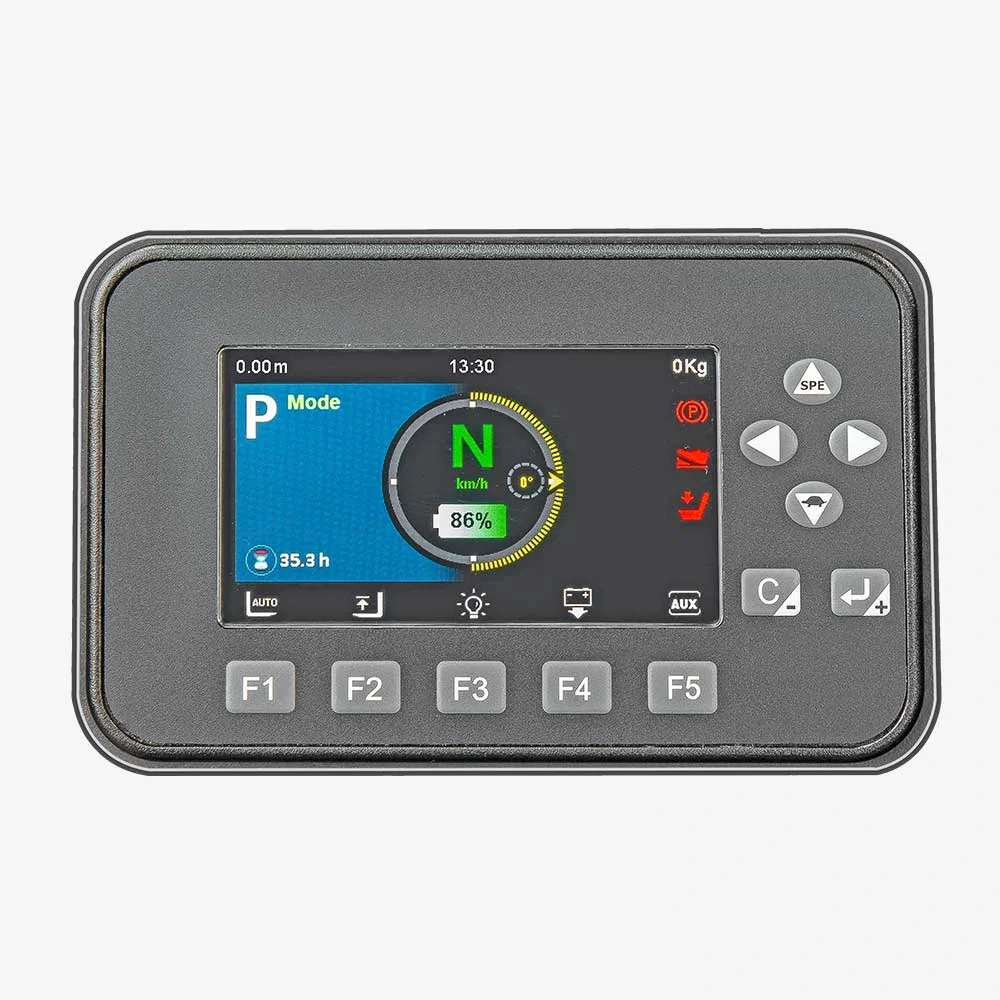

Streamlined Console Integrated instrument buttons replace physical controls for a cleaner, more efficient interface.

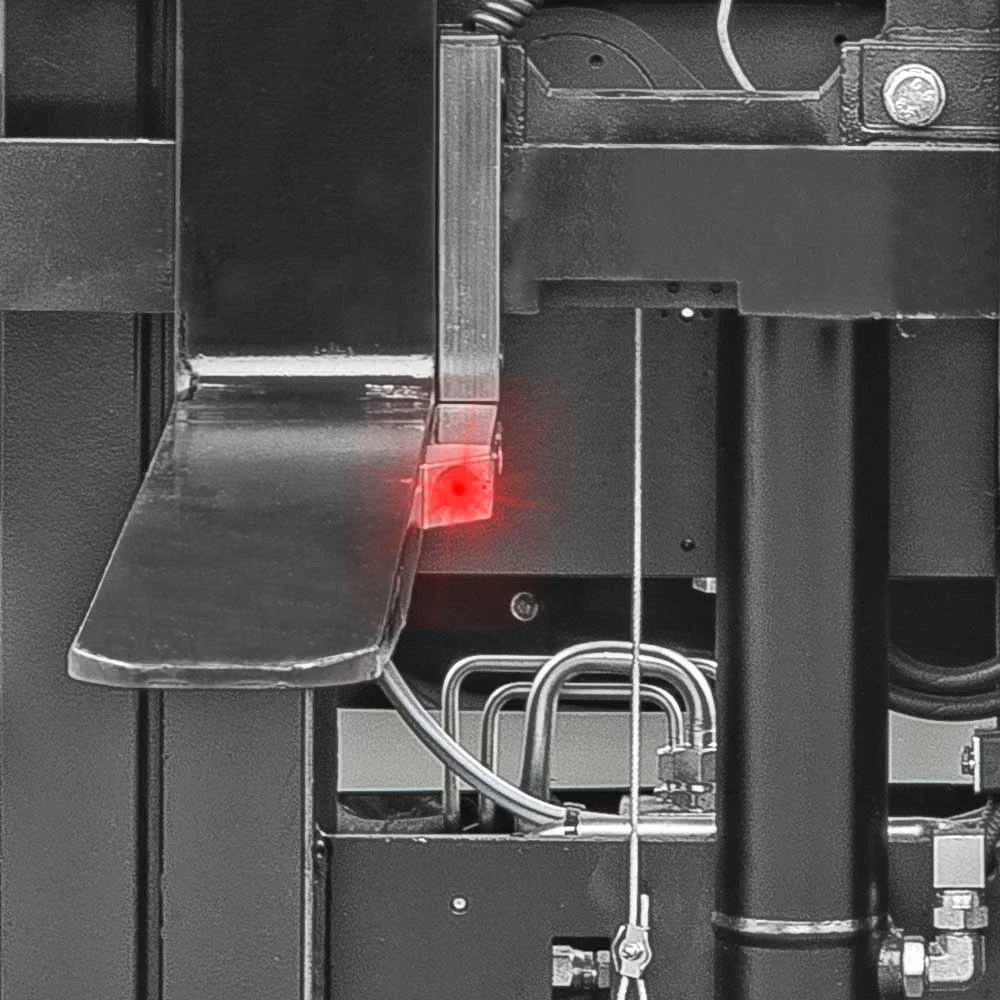

Fork Laser Guidance Integrated fork-tip lasers project red lines for precise pallet alignment, enhancing safety and stacking accuracy.

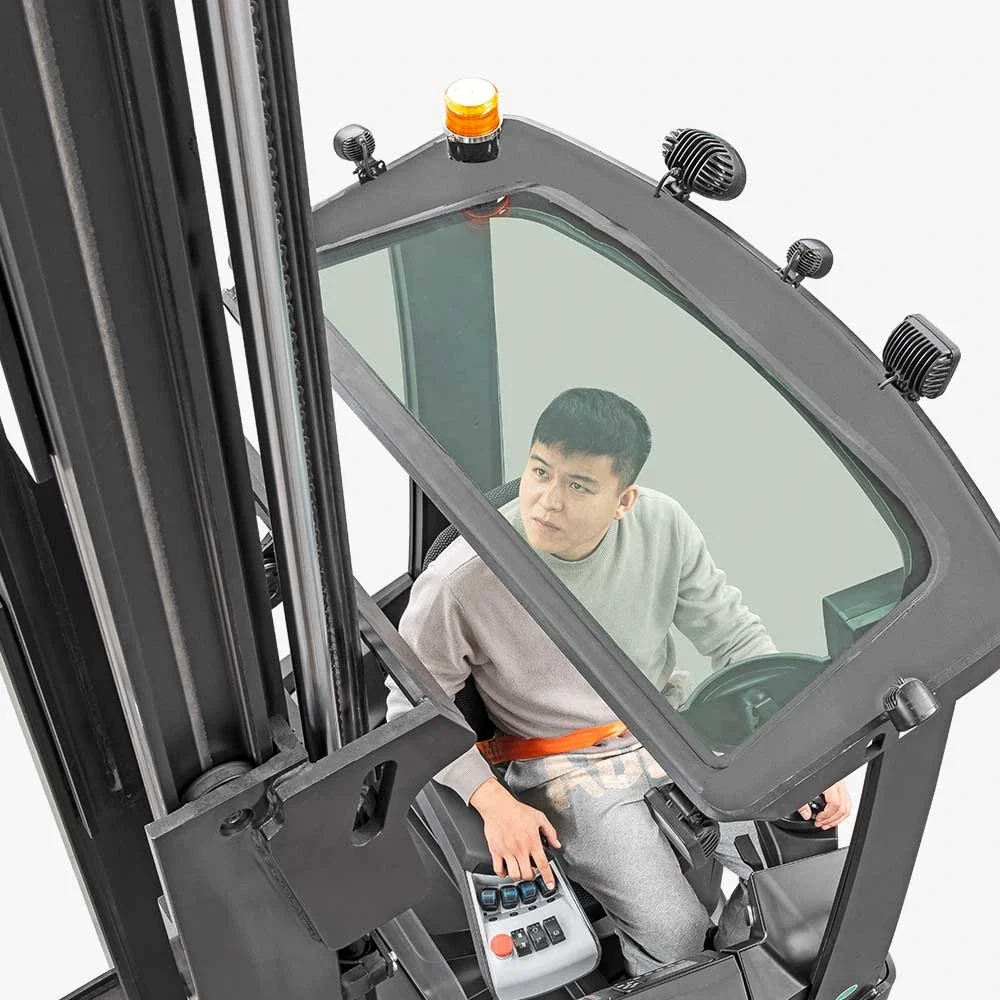

Panoramic Visibility Crossbeam-free roof design ensures unobstructed views of forks and loads.

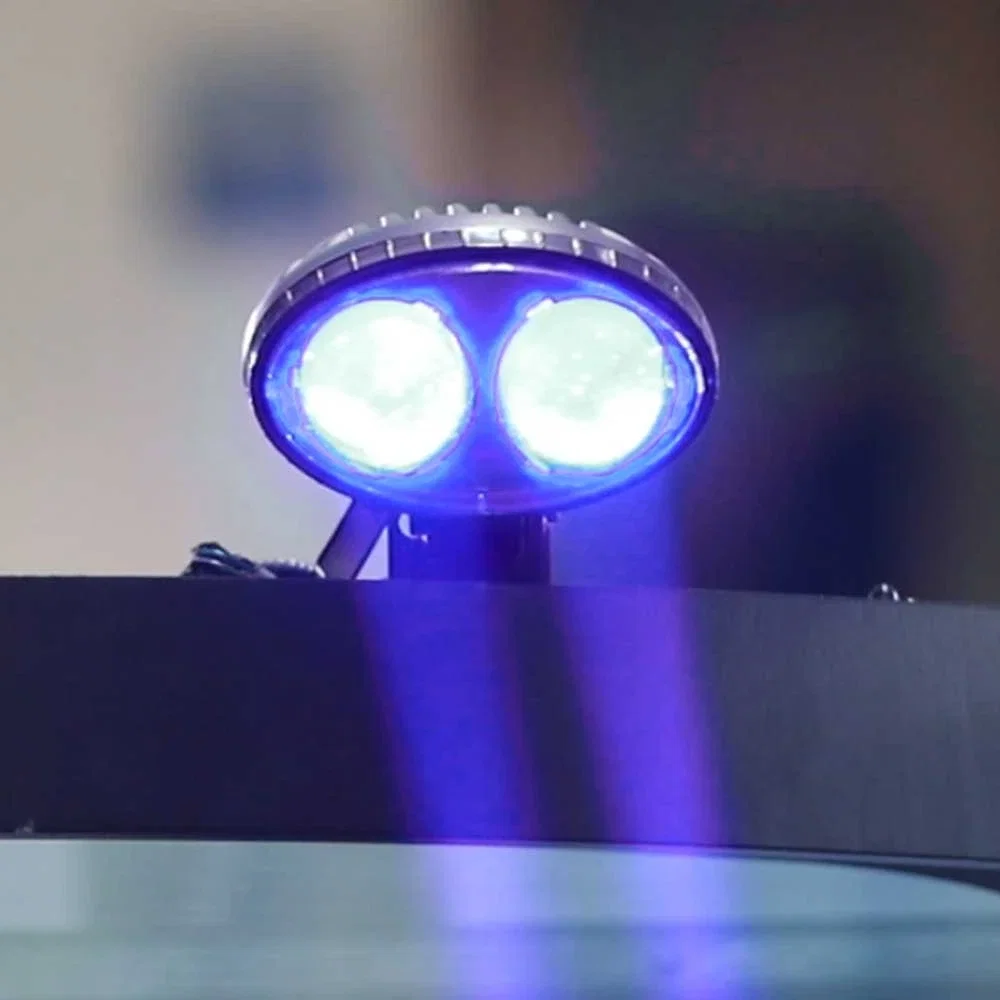

Floor Spot Safety Projects a blue warning dot at blind spots, alerting nearby traffic at intersections or aisle ends.

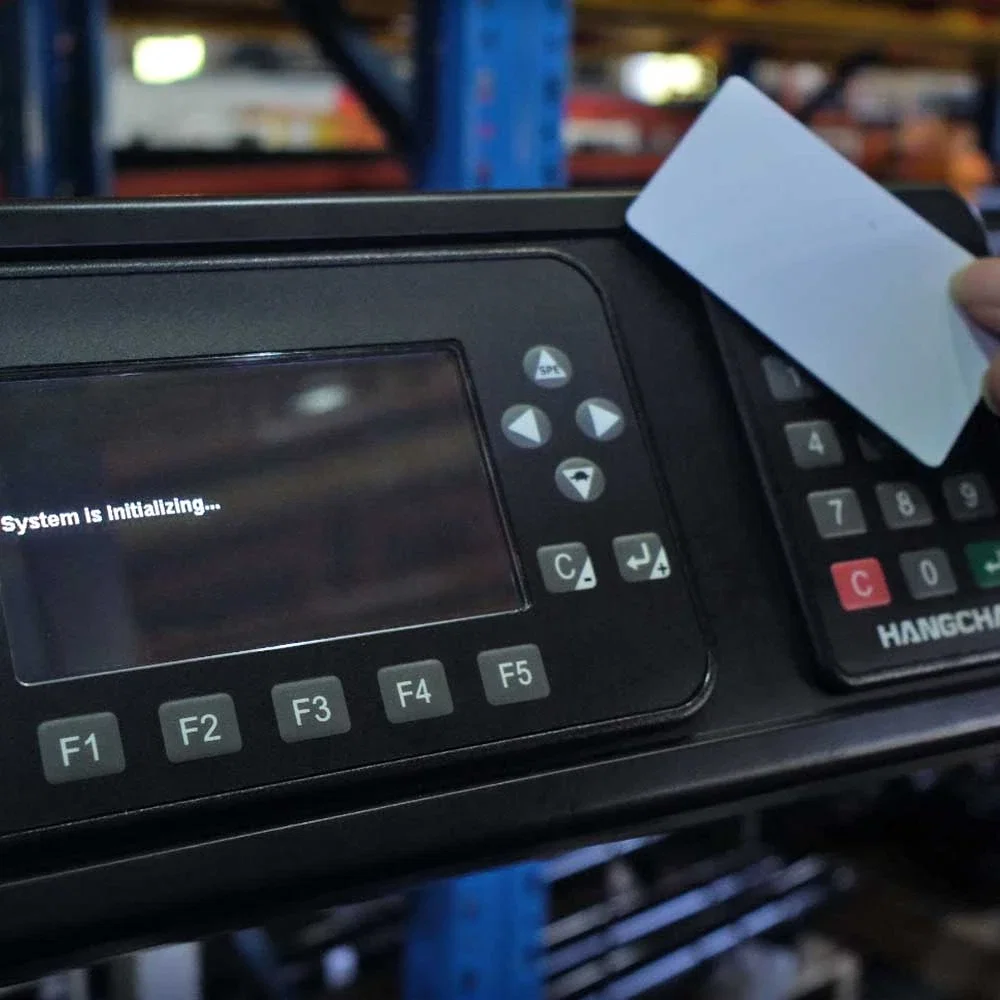

Access Control Customizable authorization via key (standard), PIN, or transponder prevents unauthorized use through the truck’s display.
Features
Efficient & Durable
CATL 80V lithium batteries ensure fast charging, extended lifespan, and minimal energy loss. The innovative battery design maximizes cab space and visibility.
Drive Control Limit
Automatically reduces travel/lateral speeds when forks are raised, enhancing safety while maintaining precise maneuverability.
Easy Maintenance
Battery packs can be swiftly replaced from the operator’s seat, minimizing downtime.
Height Selection
Pre-set lifting heights with automatic speed reduction for smooth, accurate stopping.
Other Specifications
| Product Type | Reach Trucks |
|---|---|
| Load Capacity | 1,000~1,200kg |
| Lift Height | 2700~7000mm |
| Service Weight | 2440~2460kg |
| Dimensions (L/W/H) | L: 1645-1730 * W: 1120 * H: 1995mm |
| Turning Radius | 1515~1595mm |
| Gradeability | 15% |
| Travel Speed | 14km/h |
| Battery Voltage (STD) | 80V/125~228Ah |
