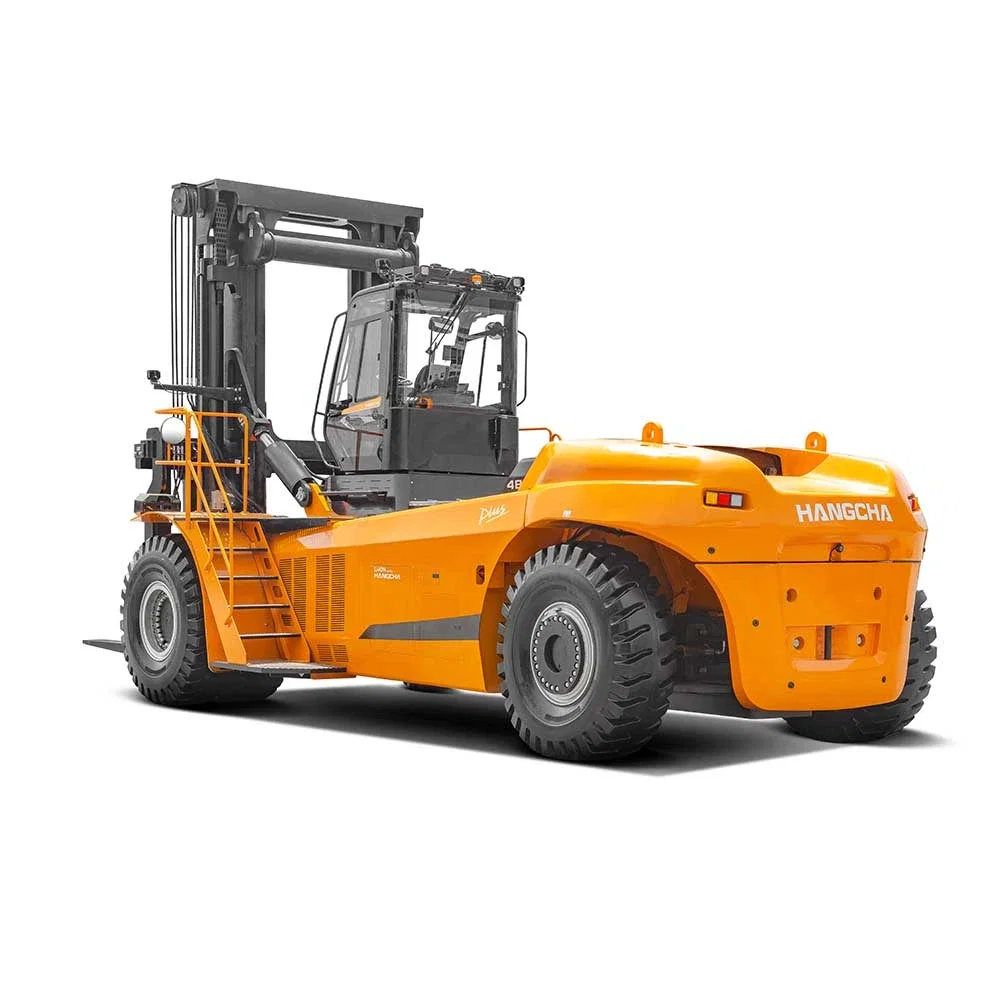

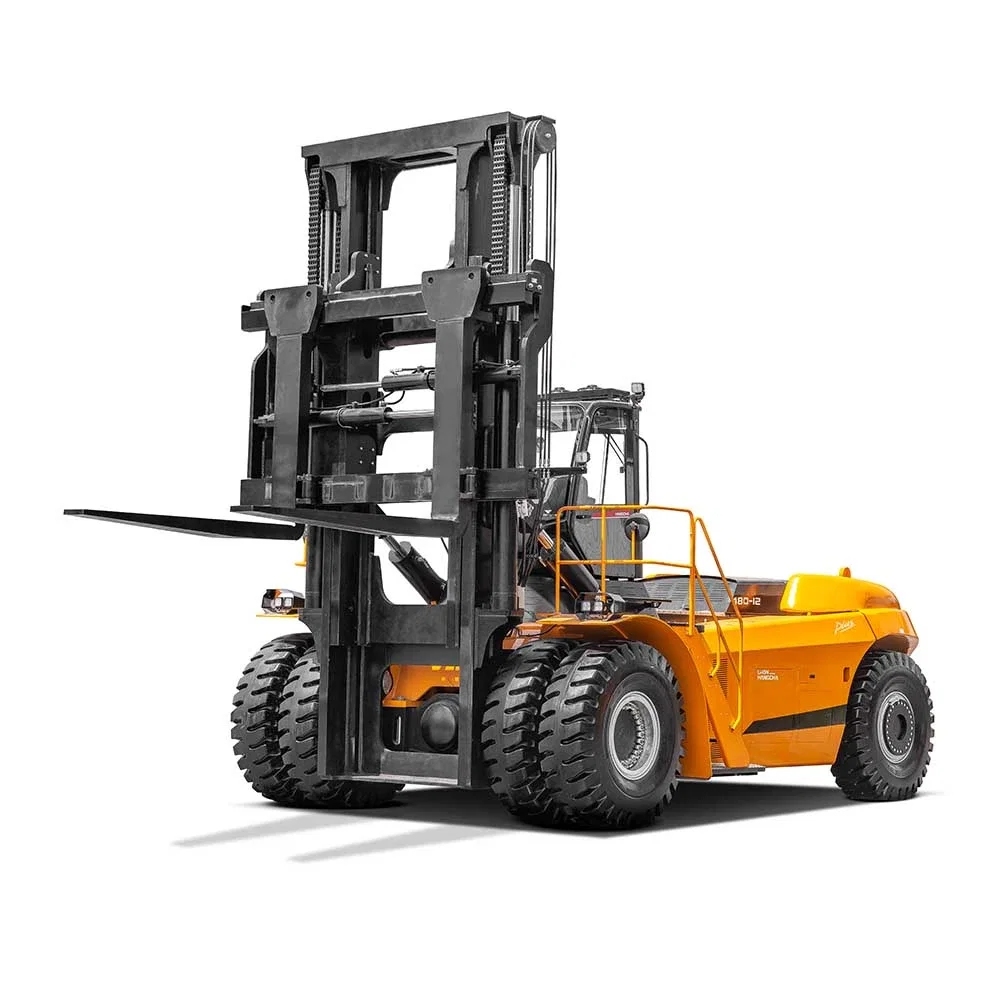

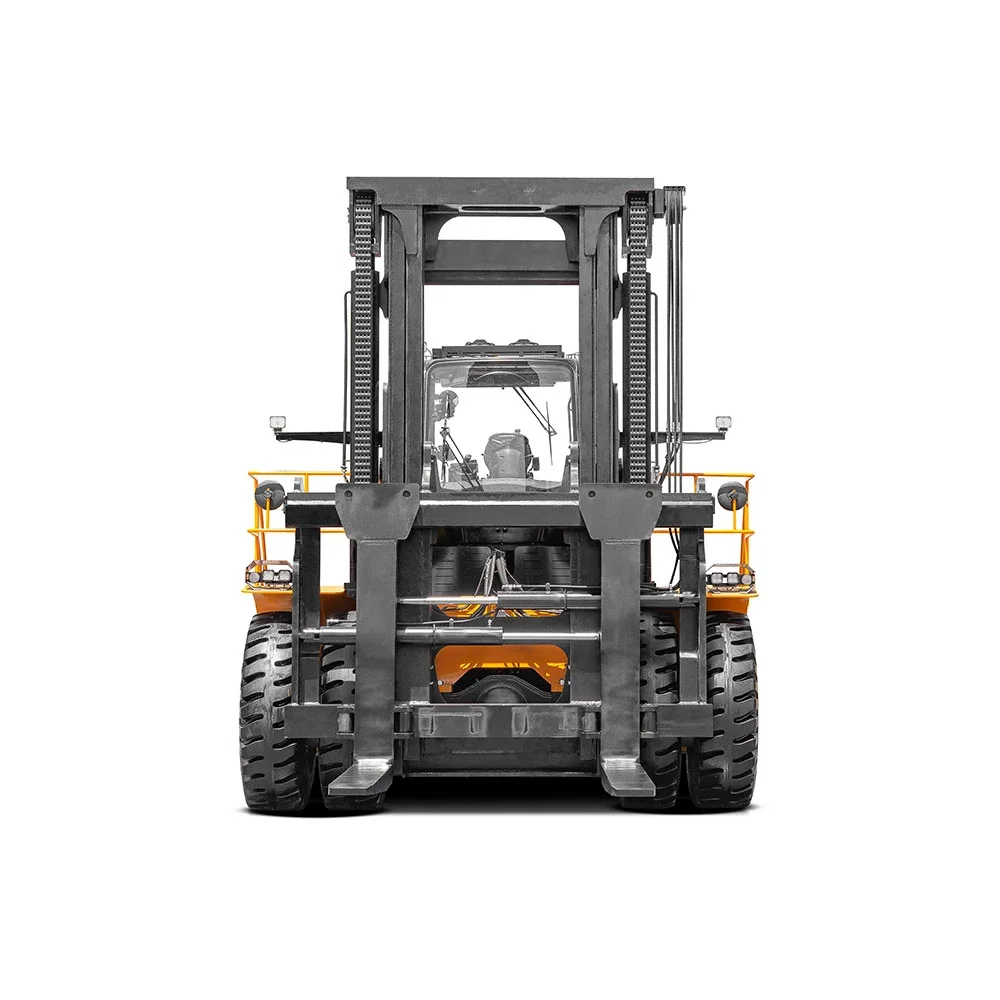

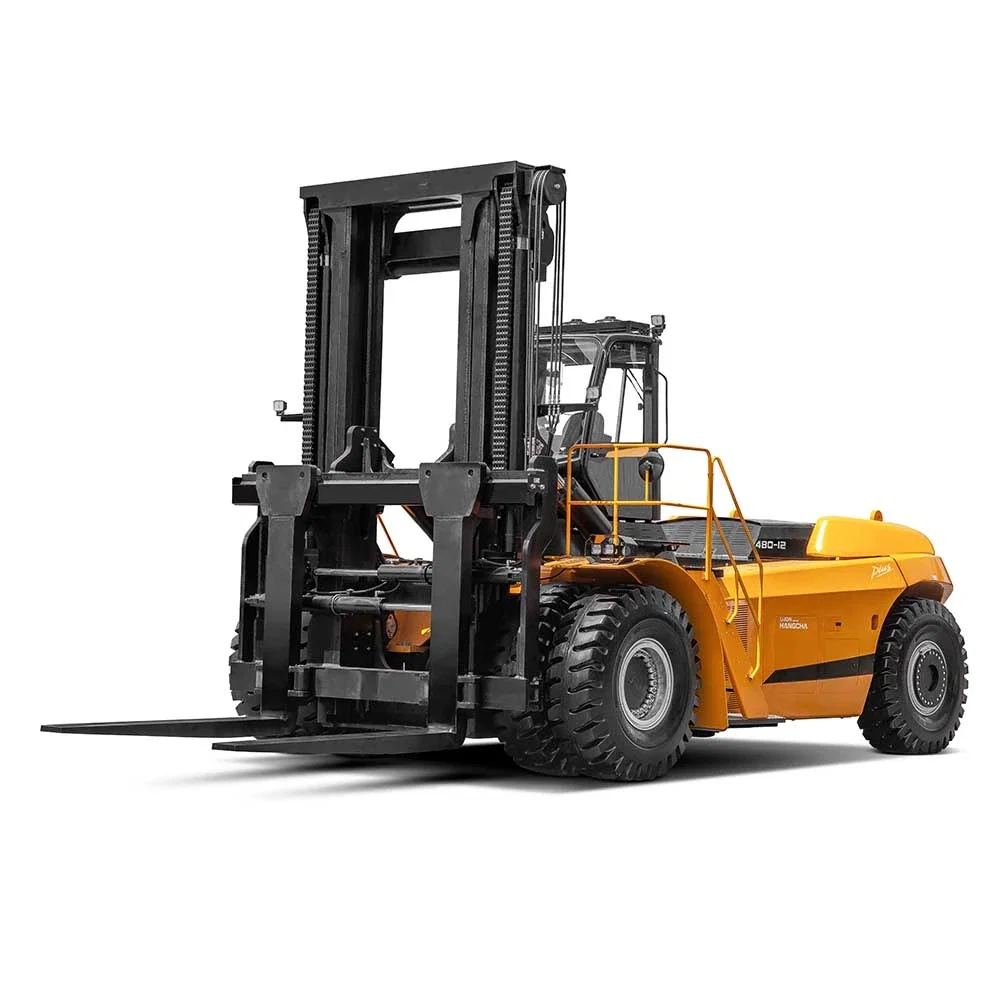

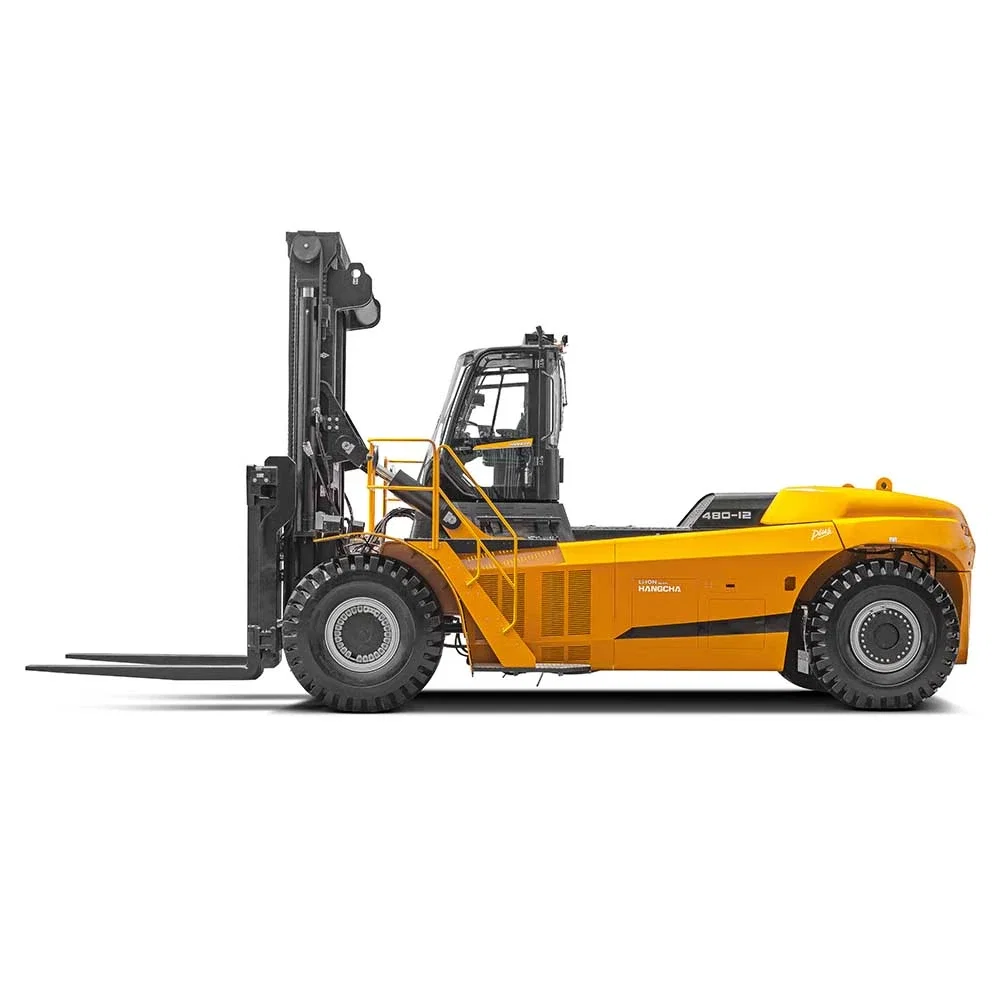

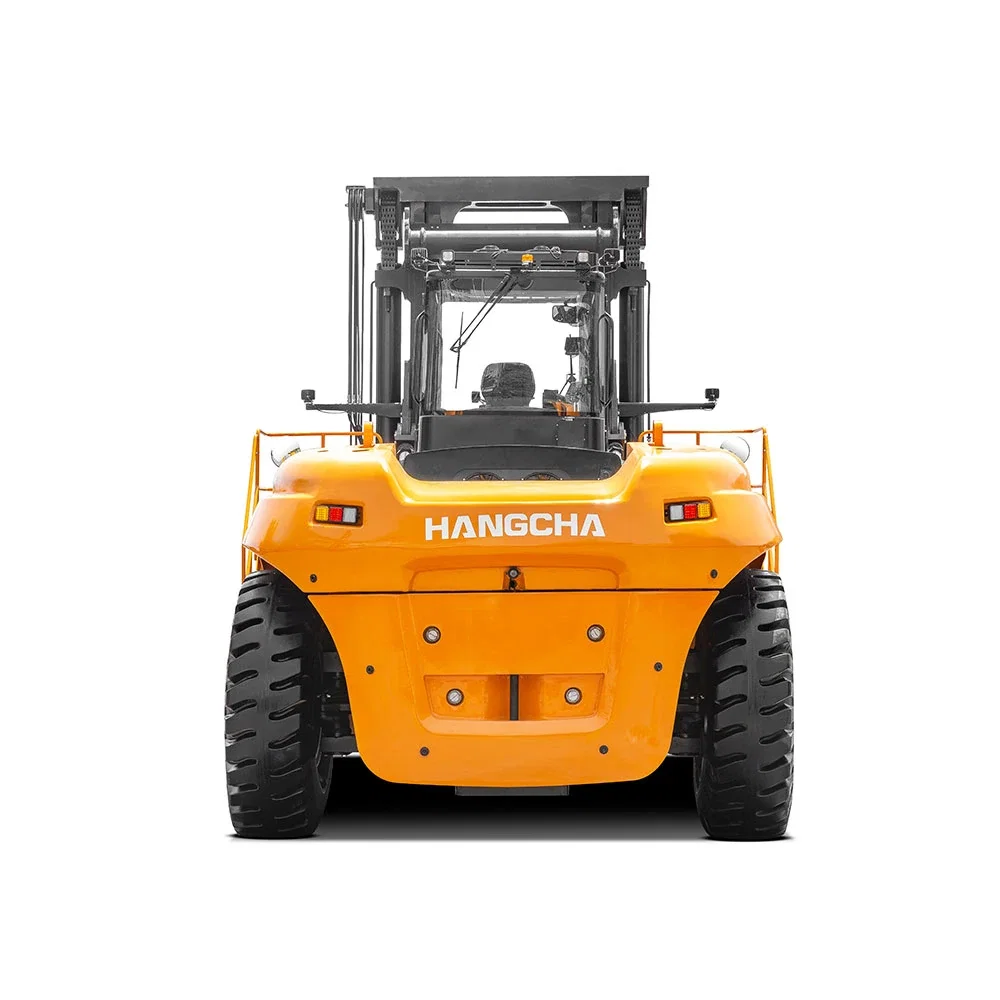

Heavy Duty Lithium Forklift Truck (38-48t)
- Load Capacity 38000-48000kg
- Lift Height 3600-7000mm
- Drive Types Li-Ion
Highlights

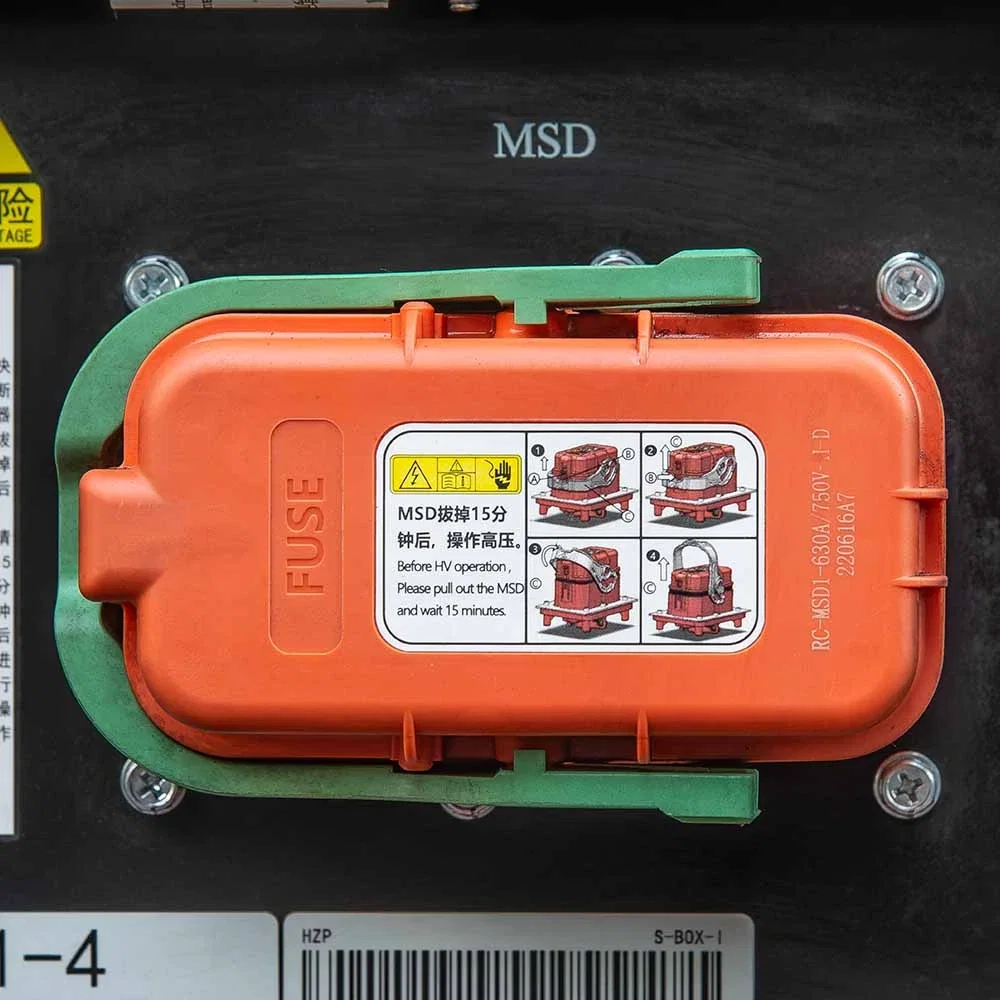

Both the battery and junction box have MSD maintenance switches to enable one-click power-down and safer maintenance.
Features
Ultra-Long Battery Life
Standard large-capacity lithium battery ensures extended runtime. Energy-efficient vehicle-grade PMSM drive system, high-voltage platform, and braking energy recovery minimize power loss for maximum uptime.
Powerful Performance
High-torque PMSM delivers ICE-level power, with performance metrics surpassing traditional forklifts.
Smart Control
Central vehicle controller features bus architecture, self-diagnostics, and fault alerts. Optional remote monitoring enables intelligent fleet and logistics management.
Easy Maintenance

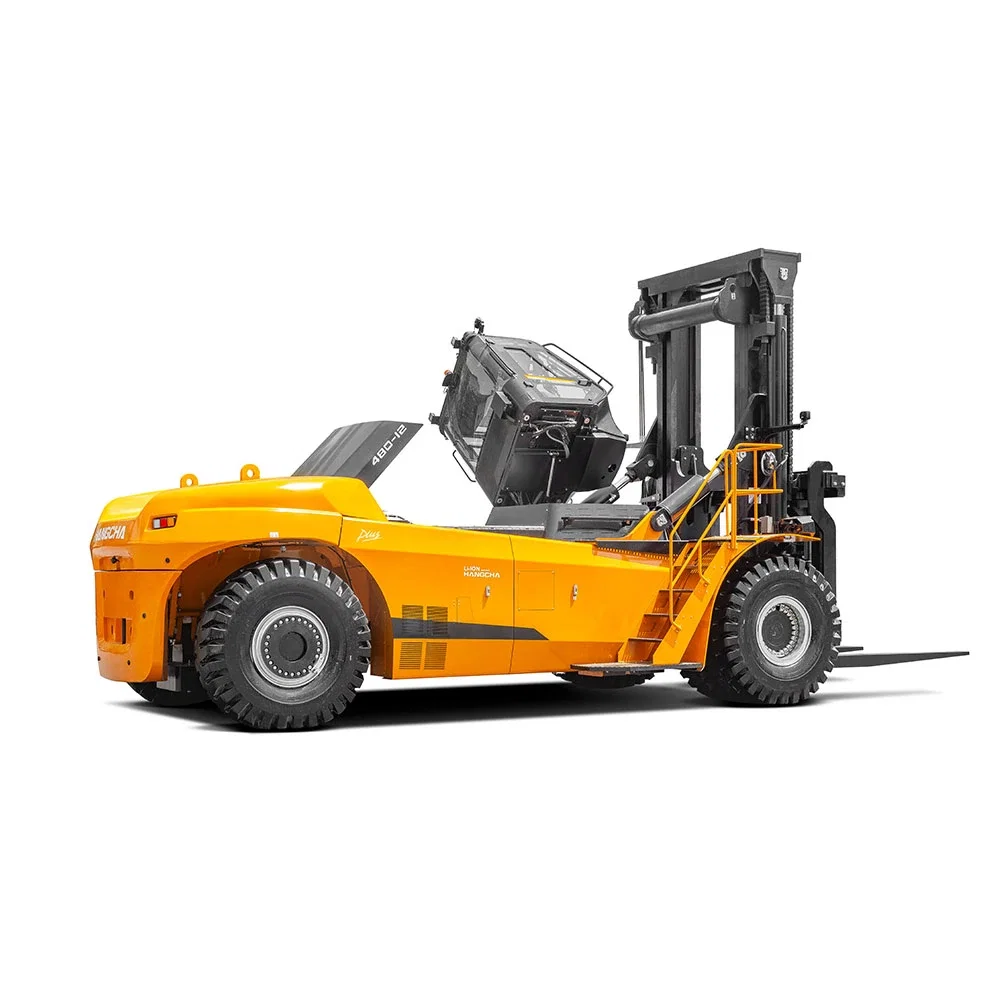

Flip-up cab and electric tipping cylinder simplify access. Wide hood and removable panels enable quick electrical component servicing.
Safety Assurance
IPX4 waterproof sealing. Electrical system includes high-voltage interlock, insulation monitoring, and potential balancing for maximum protection.
Other Specifications
| Product Type | E-Trucks, Lithium E-Trucks |
|---|---|
| Load Capacity | 38000-48000kg |
| Lift Height | 3600-7000mm |
| Service Weight | 42400-48000kg |
| Dimensions (L/W/H) | L: 9350-9370mm * W: 3420mm * H: 4100mm |
| Turning Radius | 6600mm |
| Gradeability | 25% |
| Travel Speed | 24/26 km/h |
| Battery Voltage (STD) | 282jWh/456Ah |
